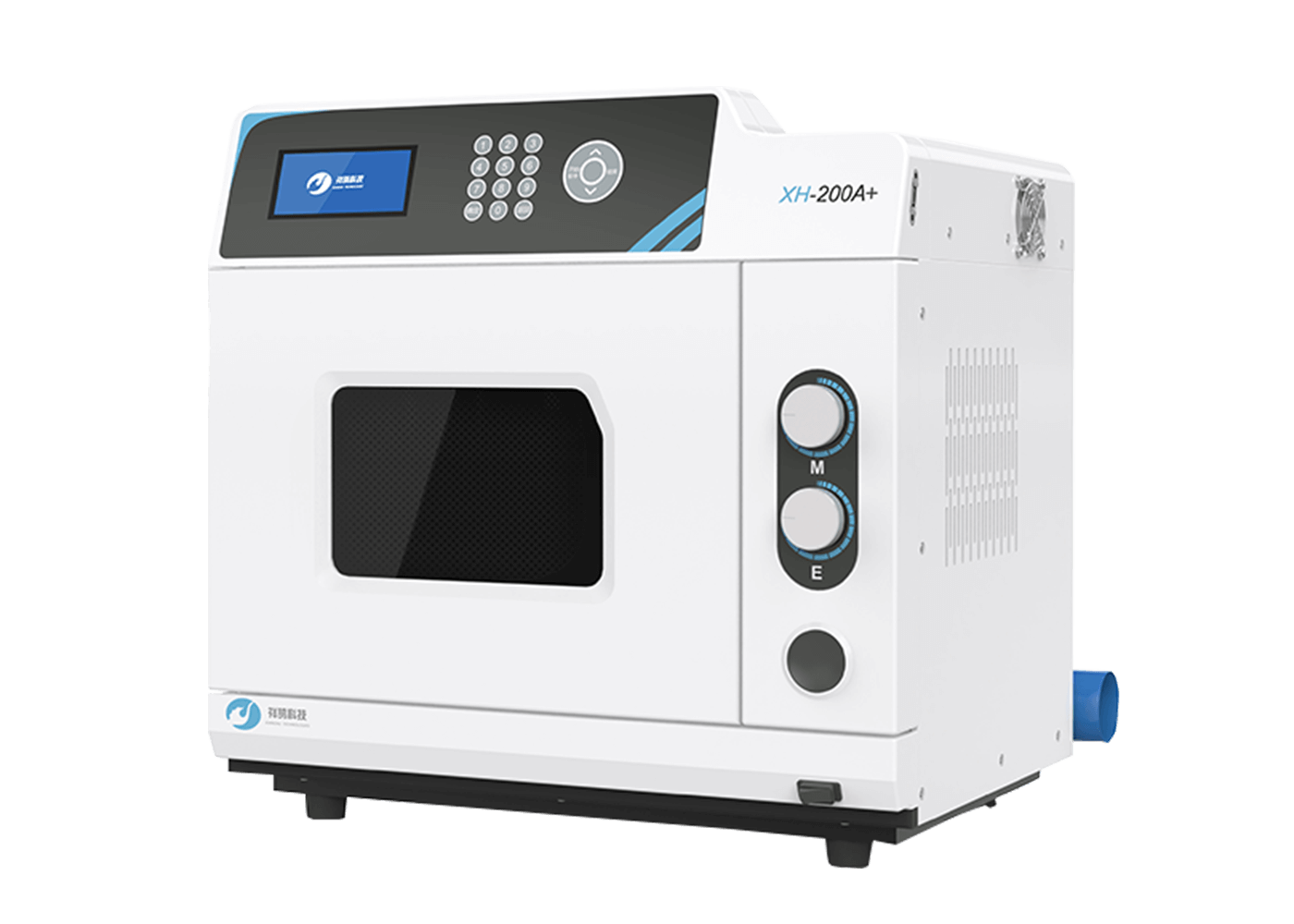

XH-200A+ MW Solid-Liquid Synthesis and Extraction Instrument
Instrument functions：
Experimental function：
Experimental condition：
Experimental purpose：
It is equipped with dual-channel temperature sensor and dual stirring system (magnetic and mechanical) to meet various reaction conditions such as solid phase, liquid phase, solid-liquid phase, liquid-gas phase, solid-gas phase under microwave atmospheric pressure system, with a wide range of applicability; it is also capable of a variety of customized modifications and upgrades, including circulating cooling and heating program, multi-point infrared temperature measurement, and large-capacity solid drying device.
| Microwave Source | Imported professional microwave source |
|---|---|
| Power Supply | AC 220V +/- 10%， 50/60Hz |
| Microwave Frequency | 2450MHz |
| Microwave Input Power | 1500W |
| Microwave Output Power | 1000W |
| Microwave power adjustment method | continuously adjustable |
| Material of Microwave Resonant Cavity | austenitic stainless steel |
| Microwave Resonant Cavity Volume | 30L |
| Microwave Cavity Modes | multimodal |
| Continuous Working Time | ≥15h |
| Primary Temperature Measurement Method | PT1000 Titanium Platinum Resistors |
|---|---|
| Temperature Sensor Range | Liquids and solid-liquid mixtures 0 - 300°C; solids 0 - 500°C/0 - 1000°C (upgrade) |
| Maximum Operating Temperature | 300°C (liquid and solid-liquid mixture), 500°C (solid phase) / 1000°C (upgraded) |
| Operating Temperature Control Range | 0-300℃ |
| Temperature Control Accuracy | ±1℃ |
| Response Speed | 5ms |
| Pressure Measurement Method | |
|---|---|
| Pressure Sensor Range | |
| Maximum Working Pressure | |
| Working Pressure Control Range | |
| Pressure Measurement Accuracy | |
| Response Speed |
| Norm | |
|---|---|
| Material | |
| Maximum withstand voltage | |
| Frequency of use |
| Rotary table station | |
|---|---|
| Temperature and pressure measurement and control system | |
| Whole Tank Temperature and Pressure Measurement System | |
| Full tank planetary magnetic stirring | |
| High Pressure Reaction Vessel Specification |
| Ultrasound source | |
|---|---|
| Ultrasonic frequency | |
| Ultrasonic power | |
| Ultrasonic power adjustment method | |
| Ultrasonic probe material | |
| Ultrasonic Probe Specifications | |
| Ultrasonic mode | |
| Ultrasonic high pressure reaction vessel |
| Fixed-position magnetic stirring | 1400r/min |
|---|---|
| Mechanical stirring | standard equipment |
| Digital Mechanical Stirring | Support options |
| Development Platform | |
|---|---|
| Screen | |
| Processing Unit | |
| Random Access Memory | |
| Memory | |
| Real-time Monitoring System | |
| USB interface | |
| Temperature-Pressure Coordinated Control | |
| Microwave-Ultrasonic Synergistic Control |
| Cooling System |
|---|
| Wavelength | |
|---|---|
| Power | |
| Reaction Vessel Material | |
| Light Intensity Detection |
| Pre-Injection Booster System | |
|---|---|
| Solid Phase Reaction Apparatus | |
| Photocatalytic Module | |
| Microwave Radiation Synchronized Cooling | |
| Helical Tube Flow Reactor |
